Overview

Needle valves are used as flow control devices. We have two types of needle valves suitable for high pressure applications upto
2. 250 kg/cm . V 6104 has inlet and outlet at right angle and V 6105 has inlet outlet in straight line. These needle valves can be used for all
gases and the material of construction will depend on the type of gas.

VANAZ V-6104

Wroking Pressure   250kg/cm

Test Pressure             375 kg/cm

End Connection        ½” -¾”, 1” BSPM

Medium                           CNG, Hydrogen, Air, Nitrogen, Oxygen, Acetylene, Argon

VANAZ V-6105

Wroking Pressure   250kg/cm

Test Pressure             375 kg/cm

End Connection        ½” -¾”, 1” BSPM

Medium                           CNG, Hydrogen, Air, Nitrogen, Oxygen, Acetylene, Argon

Overview

LINE VALVES
Line valves are used as isolation valve. V 4913 is having brass forged body and metallic seat.
2
It is suitable for high pressure application working pressure 200 kg/cm .

VANAZ V-4913//

Wroking Pressure   250kg/cm

Test Pressure             375 kg/cm

End Connection         1” BSPF

Medium                         Nitrogen,Oxygen,CNG, Hydrogen,Air,Carbon Dioxide

VANAZ V-4913

Wroking Pressure   250kg/cm

Test Pressure             375 kg/cm

End Connection         1” BSPM

Medium                         Nitrogen,Oxygen,CNG, Hydrogen,Air,Carbon Dioxide

Overview

SAFETY RELIEF VALVES
A safety relief valve opens automatically when pressure increases and shuts off as soon as the pressure decreases below the set limit.
2 V 7713 and V 7715 have metal to metal seat and are suitable for high pressure applications upto 200 kg/cm . V 7732, V 7734, V 7738, V 7744
and V 7745 have soft seat and are available at prescribed set pressures. V 4905 can be used for low pressure applications. We can deliver
SRV for all gases and material of construction will depend on the type of the gas.

VANAZ V-7744 I (SS body)
Set Pressure Range    20 to 200 Bar
End Connection       ½”, ¾”, 1” BSPF as per requirement.
Medium                  CNG, LPG, Carbon Dioxide, Nitrogen,Air, Hydrogen, Argon etc.

VANAZ V-7734 (Brass body)
Set Pressure up to 1 to 10 bar
End Connection     ½”, ¾” BSP as per requirement. M/F
Medium         CNG, LPG, Carbon Dioxide, Nitrogen, Air,Argon etc.

VANAZ V-7744 (Brass body)
Maximum Set Pressure   10 to 110 Bar
End Connection    ½”, ¾”, 1” BSPF as per requirement.
Medium                   CNG, LPG, Carbon Dioxide, Nitrogen,Air, Argon, Oxygen etc.

VANAZ V-7745
Set Pressure range – 0.3 to 12 bar
End Connection   1” BSPF
Medium                  LPG, Natural Gas, Nitrogen, Oxygen,Carbon Dioxide

VANAZ V-7738 Diaphragm Type
Set Pressure    0.03 to 0.5 Bar
 End Connection    1”,1 / “” or 2” BSPF 2
Medium            Natural Gas, LPG, Carbon Dioxide,Nitrogen, Air etc.

VANAZ V-7732
Set Pressure range – 0.5 to 12 bar
End Connection 1 / ” or 2” BSPF 2
Medium                  LPG, Natural Gas, Carbon Dioxide,Nitrogen, Oxygen

VANAZ V-4905
Set Pressure range  – 0.03 to 0.5 bar
End Connection / ” BSPF 2
Medium             LPG, Natural Gas, Nitrogen, Oxygen,Carbon Dioxide

VANAZ R-2101
Intel Pressure Range –   1-161 kg/cm
Outlet Pressure Range –   0.5-8 kg/cm
Gas Flow Rate –   25 Nm/Hr

VANAZ R-2111
Intel Pressure Range –   1-55 kg/cm
Outlet Pressure Range –   0.5-2 kg/cm
Gas Flow Rate –   25 Nm/Hr

VANAZ R-2301 II
Intel Pressure Range –   15-200 kg/cm
Outlet Pressure Range –   1-10 kg/cm
Gas Flow Rate –   200 Nm/Hr

VANAZ R-2301 I
Intel Pressure Range –   1-20 kg/cm
Outlet Pressure Range –   0.5-10 kg/cm
Gas Flow Rate –   100 Nm/Hr

VANAZ R-2320 / 2320 II
Intel Pressure Range –   19 kg/cm
Outlet Pressure Range –   0.5-4 kg/cm
Gas Flow Rate –   350 Nm/Hr

VANAZ R-6425 / 6425 II
Intel Pressure Range –   19 kg/cm
Outlet Pressure Range –   0.5-4 kg/cm
Gas Flow Rate –   1500 Nm/Hr

VANAZ R-6430 / R-6431
Intel Pressure Range –   1-5 kg/cm
Outlet Pressure Range –   0.05-0.15 kg/cm
Gas Flow Rate –   1000 Nm/Hr

VANAZ V-4335 with 2301 Pilot
Working Pressure –   1-49 Bar
Shut Off Pressure Setting –   6-12 kg/cm
Gas Flow Rate –   6000 Nm/Hr

Overview

INDUSTRIAL REGULATOR
R-2202 is mainly used as adjustable pressure regulator for LPG / Natural Gas in canteen restaurants & for small furnaces.

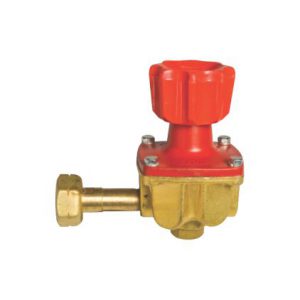

VANAZ R-2202/2202 I
2 Inlet Pressure Range 0.5 – 17 kg/cm
2 Outlet Pressure Range 0.2 – 2 kg/cm
3 Gas Flow Rate 25 Nm /hr.
End Connection Inlet: 21.8 x 14 TPI L.H. Union nut
1 Outlet: / ” BSPF 4
Gas LPG, Natural, Carbon Dioxide, Nitrogen,
Argon & Air
Available in Brass R 2202 & Aluminum body R 2202 I
1 Also available in / ” BSPF and union nut on requestVANAZ R-2202/2202 I
2 Inlet Pressure Range 0.5 – 17 kg/cm
2 Outlet Pressure Range 0.2 – 2 kg/cm
3 Gas Flow Rate 25 Nm /hr.
End Connection Inlet: 21.8 x 14 TPI L.H. Union nut
1 Outlet: / ” BSPF 4
Gas LPG, Natural, Carbon Dioxide, Nitrogen,
Argon & Air
Available in Brass R 2202 & Aluminum body R 2202 I
1 Also available in / ” BSPF and union nut on request

Overview

NON RETURN VALVES
There are four types of Non-Return valves. V 6301, V 6304 is having metal to metal seat, V 6302, V 6303 have a soft seat. We can supply
Non return Valves for all gases. The material of construction depends on the nature of media/gas for which it is to be used.

VANAZ V-6301
 Max Working Pressure 110 kg/cm
End Connection  1/2 “, 3/4 “, 1” BSPF 2 4
Medium        CNG, Nitrogen, Air, Hydrogen,Carbon Dioxide

VANAZ V-6302
Max Working Pressure 19 kg/cm
End Connection    1 /2 “, 3/4 “, 1”, 1 / “, 2” BSPF 2 4 2
Medium         Natural Gas, LPG etc.

VANAZ V-6303
Max Working Pressure   19 kg/cm
End Connection         1 “, 2” BSPF 2
Medium                   Natural Gas, LPG etc.

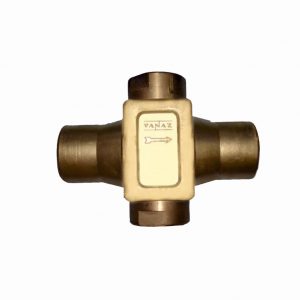

VANAZ V-6304 Brass Body
Max Working Pressure   200 kg/cm
End Connection                1″ , 1 /2 ” BSP M/F 2
Medium            Natural Gas, LPG, Nitrrogen, Argon,Carbon Dioxide and Hydrogen

Overview

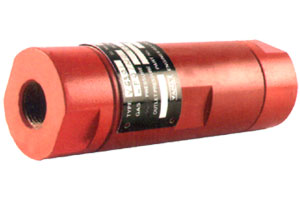

FLAME ARRESTERS
Flame arrestors are used to arrest the flame from reaching the highly dense area of fuel, incase of backfire and thus avoid accident and
explosions. When a flammable gas escapes through the safety relief valve to atmosphere it must pass through the flame arrestor which will
prevent the occurence of accidents/backfire. The flame arrestor should be installed prior to the burner to avoid flame propagation into the
upstream line due to backfire. These 3 models are without Non Return Valve.

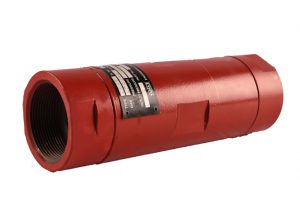

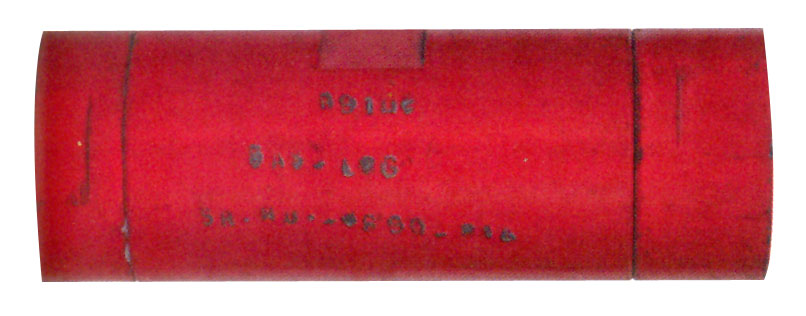

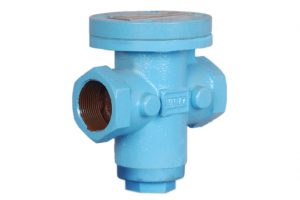

VANAZ R-9102 / 9104
Maximum Working Pressure 20 kg/cm
End Connection    R-9104 / ” / / ” / R-9102 1” BSPF 2 4
Medium            LPG, Natural Gas

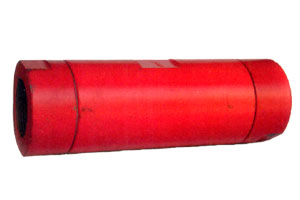

VANAZ R-9109 / 9109 I
Maximum Working Pressure 20 kg/cm
End Connection         R 9109, 1 / ” BSPF 2
R 9109 I, 2″ BSPF
Medium                        LPG, Natural Gas

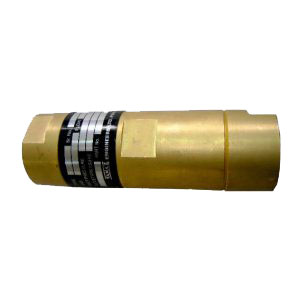

VANAZ R-9110 / 9111
2 Maximum Working Pressure 20 kg/cm
 End Connection    R 9110 / “, / ”-1” BSPF 2 4
R 9111 / “, 2 BSPF
Medium         Oxygen, LPG, Natural Gas &Acetylene

Overview

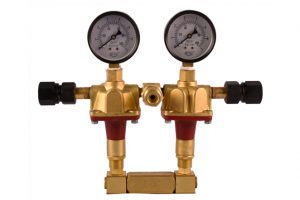

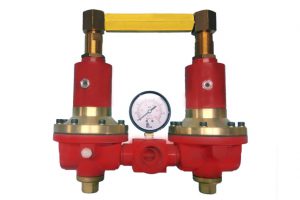

AUTO CHANGEOVER
Auto changeovers are working on a pressure principle and switch the side of supply according to a set pressure drop which activates the
switchover. The auto changeover can also be manufactured for liquid LPG systems.

VANAZ R-9501
R 9501 in 2202 model for 50 kgs/hr
Outlet set pressure : 1.2 kg/cm
Inlet pressure : 1 to 17 kg/cm
End Connection 1/2 ” BSPF

VANAZ R-9502
R 9502 in 2301 body model for 150kgs/hr
2 Outlet set pressure : 1.2 kg/cm
2 Inlet pressure : 1 to 17 kg/cm
End Connection 1” BSPF

Overview

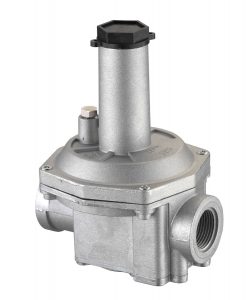

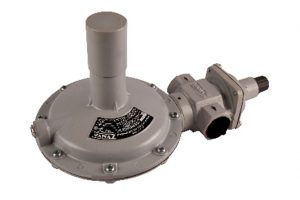

SERVICE REGULATORS
These regulators are used in pressure reducing system for Natural gas or LPG. They are used to reduce the natural gas pressure from
2 4 kg/cm to 75mbar before supplying it to the domestic feeder line. These regulators are having built in over pressure shut off and under
pressure shut off valve and creep relief valve (safety relief valve).

VANAZ R-4416 / 4416 II / 4417 / 4417 II UPSO, OPSO & CRV
Inlet Pressure Range 0.5 – 6 kg/cm
Outlet Pressure Range 100-300 mbar with OPSO UPSO CRV
Gas Flow Rate 6/10/25/50 Nm /hr.
End Connection / ” x 1” BSPF 4
Gas Natural Gas, LPG
OPSO set at 40% higher than set outlet pressure
UPSO set at 20% below set outlet pressure
CRV set at 35% higher than set outlet pressure
As per EN88-2

VANAZ R-4410 UPSO, OPSO & CRV
2 Inlet Pressure Range 0.5 – 5 kg/cm
Outlet Pressure Range 30-200 mbar with OPSO UPSO CRV
Gas Flow Rate 65 Nm /hr.
End Connection 1” BSPF
Gas Natural Gas, LPG
OPSO set at 40% higher than set outlet pressure
UPSO set at 20% below set outlet pressure
CRV set at 35% higher than set outlet pressure
